Key Takeaways
A careful diagnosis starts with the pattern of the fault, then narrows the search without risking damage to wiring or modules.
- Note when the symptom occurs and which systems are affected.
- Check battery condition and charging performance before assuming there is a short.
- Use the correct wiring diagram and model-specific safety procedures.
- Isolate the circuit methodically instead of repeatedly replacing fuses.
- Repair the underlying fault, then verify the circuit and check for returning codes.
Recognize the signs of an electrical short
Electrical symptoms can look alike even when their causes differ. A repeatable pattern—what stops working, when it happens, and what changes just before it—offers a better starting point than replacing parts based on a hunch. In Land Rover electrical short diagnosis, the aim is to find the affected circuit and test it safely, not to assume every electrical warning means damaged wiring.
Identify symptoms such as blown fuses, flickering lights, or a dead battery
A fuse that blows again after replacement, lights that flicker, or accessories that stop working can point to an electrical fault. A drained battery may also be part of the picture, although it does not prove a short by itself. Pay attention to whether one feature or several unrelated systems are affected, and note any warning messages that appear at the same time.
A compact symptom log helps turn vague impressions into useful clues. Record observations such as these as they happen:
- Which fuse or feature is involved, if known.
- Whether the fault appears at startup, while driving, or when parked.
- Whether it is constant or intermittent.
- What changed recently, such as a repair or accessory installation.
That record can help a technician reproduce an intermittent fault and can keep the investigation focused. Avoid repeatedly replacing a fuse that blows again; the recurring failure is a reason to investigate the circuit, not to fit a higher-rated fuse.
Note when the problem occurs and which features are affected
Timing can narrow the search. A fault that appears only when a door moves, for example, suggests a different set of places to inspect than one that occurs after rain or only when the vehicle is parked. Record which controls were in use and whether the same combination of symptoms returns.
Keep notes specific to the vehicle and label saved material clearly. If your browser research covers unrelated subjects such as sleep routines, identifying insect bites, or roofing terminology, keep those references separate from wiring diagrams and repair records. Clear prompt engineering is another example of why precise wording matters: a concise description of what happened is more useful than a broad guess about the cause.
Distinguish a short circuit from a weak battery or charging fault
A short is only one possible explanation for electrical trouble. A weak battery, poor connection, charging-system problem, or excessive current draw can produce overlapping symptoms, so check the basics before tracing a harness. The comparisons below are starting clues, not a substitute for testing.
| Observation | Possible direction | Useful next check |
|---|---|---|
| Battery is discharged after sitting | Battery condition or a current draw | Test battery condition and investigate draw using the correct procedure |
| Lights dim or flicker while running | Connection or charging concern | Inspect terminals and grounds; test charging performance |
| Same fuse opens repeatedly | Fault in the protected circuit | Identify the fuse and follow its wiring diagram |
| One feature fails intermittently | Connector, wiring, or component issue | Note when it occurs and inspect the relevant circuit |
Treat these patterns as ways to choose a next test, not as diagnoses. An overview of common Land Rover electrical problems can provide general context, but the vehicle’s own wiring information and test results should guide the repair.
Prepare for safe, systematic testing
Electrical diagnosis is more effective when each test answers a clear question. Before touching a connector, identify the vehicle and circuit, gather the right references, and consider whether the work is within your experience. The safest approach is a measured one: stop if a procedure is unclear or involves a system you are not qualified to handle.
Gather a wiring diagram, multimeter, and suitable test light
Use a wiring diagram that matches the vehicle’s model year and configuration; circuits and procedures can vary. A multimeter can help check voltage and continuity when used correctly, while a suitable test light may be appropriate for some conventional circuits. Neither tool should be connected blindly to an unknown wire or module pin.
Read the diagram first and identify the fuse, connectors, grounds, and loads that belong to the affected circuit. Check your meter leads and settings before taking a measurement. If you are unsure what a test light or meter could place on a circuit, pause and consult a qualified technician rather than risk damage.
Record vehicle details, recent repairs, and diagnostic trouble codes
Write down the model year, relevant vehicle details, recent repair work, and any accessories added or changed. Record codes before clearing them, including which module reported each code and any available freeze-frame information. These details may reveal a useful timeline, but they do not establish that a short exists.
If diagnostic records are stored or shared digitally, keep personal information in mind and review relevant privacy and cookie practices. For guidance on reading vehicle codes and choosing a suitable tool, see this Land Rover fault-code guide; confirm that any advice or equipment applies to the specific model and year.
Follow battery-disconnection procedures for the specific Land Rover model
Do not assume that disconnecting the battery is a universal first step. The required sequence and precautions depend on the vehicle, and some systems may need specific handling before power is removed or restored. Follow the service information for that exact model and configuration.
If the procedure is unavailable or unclear, do not improvise. Disconnecting power incorrectly can create additional faults or affect systems that require particular precautions. A qualified technician can determine the safe method for the vehicle at hand.
Avoid probing airbag and other safety-system wiring
Airbag, restraint, and other safety-system wiring should not be treated like an ordinary accessory circuit. Do not probe connectors or wires associated with these systems unless the correct procedure explicitly permits it and you are qualified to follow it. Color alone is not a safe way to identify a circuit.
When the suspected fault is near safety-system wiring, stop and seek model-specific professional guidance. A careful boundary is part of good diagnosis: isolating an electrical fault does not justify testing a circuit whose risks or requirements are not understood.
Check the battery, charging system, and stored codes
A sound baseline helps prevent a weak battery or poor connection from sending the investigation in the wrong direction. Start with visible condition and basic electrical checks, then read stored codes before drawing conclusions. The combination of observations is more useful than any single warning light or measurement.
Inspect battery terminals, grounds, and visible wiring
With the vehicle safe to inspect, look for loose or visibly damaged battery connections, signs of corrosion, and poor-looking ground connections. Examine accessible wiring for cuts, crushed insulation, heat damage, or evidence of rubbing. Do not pull on wires or disturb connectors simply to see whether a symptom changes.
A visual check cannot rule out a hidden fault, but it can reveal issues that deserve attention before more involved testing. Note what you find and where it is located; a precise location is more useful later than a general statement that the wiring looked worn.
Measure battery voltage and check charging-system performance
Use the correct test procedure and compare readings with specifications for the vehicle and battery. A voltage reading taken at one moment is only part of the picture: battery condition, temperature, and whether the vehicle is running can affect what the result means. If you do not have the appropriate specifications or equipment, leave these checks to a qualified technician.
Charging performance should also be assessed rather than inferred from a warning light or from the fact that the vehicle starts. Abnormal results can explain symptoms without proving a wiring short. Resolve or account for battery and charging concerns before treating them as evidence of a specific circuit fault.
Scan relevant modules for codes and freeze-frame information
Use a scan tool appropriate to the vehicle to read relevant modules and save available codes and freeze-frame data. A code may indicate that a system detected an abnormal condition, but it does not necessarily identify the physical cause. Keep the original information before clearing anything, so the pattern is not lost.
Codes can help direct attention to a system or condition, especially when they align with the symptoms and timing. They should be read alongside the wiring diagram, inspection findings, and test results rather than used as a parts-replacement list.
Use codes to guide testing without treating them as proof of a short
A stored code can arise from different underlying conditions, including low voltage, a poor connection, a component problem, or damaged wiring. Look for whether the code returns after the relevant conditions are checked and whether it matches the complaint. A code by itself is not proof of a short to power or ground.
A disciplined diagnosis asks what test would confirm or rule out the suspected cause. If the code and the physical symptoms point in different directions, broaden the checks rather than forcing the evidence to fit a single explanation.
Isolate the affected circuit
Once the symptom and baseline checks are documented, focus on the smallest circuit that could explain the fault. The wiring diagram helps establish what shares a fuse, connector, ground, or power feed. Keep the vehicle-specific procedure close at hand, because disconnecting or testing components can affect other systems.
Match the blown fuse or symptom to the wiring diagram
Identify the fuse or circuit associated with the symptom using the correct diagram and fuse information. If a fuse has opened, do not rely on a label alone when the vehicle’s documentation provides more detail. Trace the circuit’s listed components and connection points before unplugging anything.
This is also a sensible point to seek qualified help if the diagram is incomplete or the circuit involves systems you should not test. An automotive electrical diagnosis and repair overview describes why professional assessment may be appropriate when the cause is not clear; use the vehicle’s service information for the actual test steps.

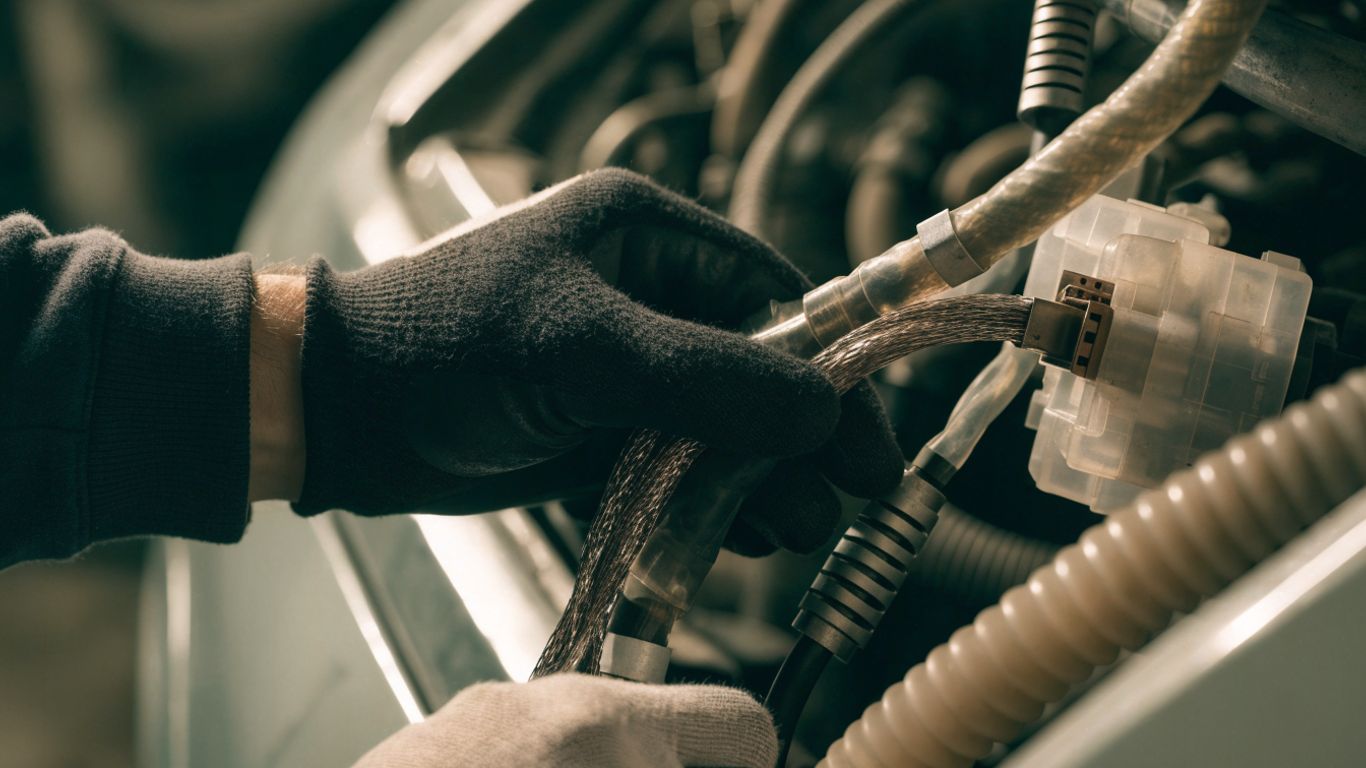

Inspect connectors and harnesses along the circuit’s route
Follow the circuit’s path through accessible connectors and harness sections. Look for displaced clips, damaged insulation, pinch points, or signs that a harness has been disturbed. Do not force a connector apart; use the correct release method and inspect it only when safe to do so.
Pay attention to locations where wiring moves or passes close to another component. A fault may be intermittent if a wire only contacts metal or another conductor under certain movement or vibration, so record the position and conditions rather than tugging on the harness.
Disconnect loads one at a time to narrow down the fault
If the service procedure allows it, disconnect one load at a time and observe whether the symptom or test result changes. Reconnect or document each component before moving to the next so the process remains controlled. Disconnecting several at once can hide which change mattered and may create extra faults.
A single change at a time makes the result easier to interpret. If the issue changes after a load is isolated, that narrows the next test; it does not automatically prove that the disconnected component itself is defective.
Use a fused jumper or circuit breaker only when appropriate
A fused jumper or circuit breaker can be useful in certain procedures, but it is not a general substitute for a fuse or a reason to energize an unknown circuit. Use one only when the wiring information and test method call for it, with a suitable rating and setup. Never bypass a protective device to keep a faulty circuit running.
If the correct rating or connection point is uncertain, stop. Improvised jumpers can damage wiring or components and can make a fault more dangerous. A professional can choose a controlled test method when the procedure is unclear.
Pinpoint the short to power or ground
After narrowing the circuit, determine what the evidence supports: an unwanted connection to ground, an unwanted voltage, or another failure altogether. The circuit must be in the correct state for each measurement, and the specified procedure matters. A meter reading without that context can be misleading.
Check for continuity to ground with the circuit safely de-energized
A continuity check to ground should be performed only when the circuit has been made safe and de-energized according to the vehicle-specific procedure. Isolate components or modules as directed before measuring; otherwise, normal internal paths can affect the result. Confirm the meter setting and the test points before making contact.
Interpret the reading using the wiring diagram and test instructions. Continuity where a circuit is expected to be isolated may suggest an unwanted path, but the finding needs confirmation. Do not use a continuity setting on an energized circuit.
Test for unwanted voltage with the circuit energized as specified
Some checks require the circuit to be energized, while others must not be. Follow the specified setup, including which connectors remain attached and what state the vehicle should be in. Do not assume that a voltage reading alone identifies the source or location of a fault.
Use only the approved test points and instrument for the procedure. If the circuit is connected to a module or safety system and the method is not explicit, do not probe it. Properly scoped testing is safer and produces results that can be interpreted.
Watch for chafing near hinges, brackets, and engine-bay components
Where the diagram and symptom point, inspect areas where a harness passes near moving hinges, sharp edges, brackets, or engine-bay components. Look for rubbed or flattened insulation and evidence of repeated contact. Avoid dismantling trim or removing covers unless the correct procedure allows it and you can restore them properly.
A visible mark can be a clue, but it still needs to match the affected circuit and the conditions under which the fault occurs. Photograph or note the location before disturbing the harness, especially if the contact point is intermittent or difficult to reach.
Consider water intrusion, corrosion, and aftermarket accessories
Moisture, corrosion, or a recently installed accessory may be relevant if the timing and circuit evidence point that way. Inspect for signs of water or corrosion at the appropriate connectors, and compare any added wiring with the vehicle’s documented circuit. Do not assume an accessory is at fault simply because it is present.
If the installation or repair history is unclear, preserve the evidence and have the circuit assessed before making changes. A broad Land Rover electrical repair overview may help explain when a specialist inspection is useful, but it cannot replace the correct procedure for this vehicle.
Repair the fault and confirm the fix
A repair should restore the circuit’s protection and routing, not just make the symptom disappear temporarily. Use materials and methods suited to the vehicle and the damage, and follow service information where available. If the fault is beyond a safe, straightforward repair, hand it to a qualified automotive electrician.
Repair or replace damaged wiring with the correct materials
Repair or replace damaged wiring using materials and a method appropriate to the circuit and vehicle. A twisted connection or household tape is not a durable substitute for a proper automotive repair. Where the repair method is uncertain, avoid improvisation and seek qualified help.
After the repair, inspect the work before reconnecting or powering the circuit. Correct conductor size, secure connections, and appropriate insulation matter because a poor repair can create a new fault or conceal the original one.
Secure harnesses and restore seals, clips, and protective coverings
Return the harness to its intended route and refit any clips, seals, grommets, or protective coverings that were removed. A wire left loose can rub or become pinched later, even if the original short is gone. Check that connectors are seated as specified and that nearby trim or covers are properly restored.
The surrounding protection is part of the repair, not an optional finishing touch. Take a final look for tension, contact with sharp edges, or gaps that could expose the wiring to the same conditions that caused the damage.
Replace fuses only with the specified rating
If a fuse needs replacement, use only the rating specified for that circuit. A higher-rated fuse can allow wiring to overheat instead of opening as intended. If the correct fuse opens again, stop using the circuit and return to diagnosis rather than installing another fuse repeatedly.
The fuse rating is part of the circuit’s protection. Confirm the correct specification from vehicle information, and do not substitute a jumper or an oversized fuse to test whether the fault has gone away.
Recheck circuit operation and scan for returning codes
After completing the repair, follow the correct procedure to restore power and check the affected feature under the conditions that previously produced the fault. Verify the result more than once if the original symptom was intermittent, and do not call the repair complete if the warning or failure returns. Scan relevant modules again where appropriate and compare any new codes with the original record.
A successful repair is one that resolves the symptom without creating another problem and leaves the wiring properly protected. If the fault persists or the test results remain uncertain, stop replacing parts and have the circuit evaluated by a qualified technician.
Conclusion
Electrical faults are easier to solve when symptoms are recorded, basic battery and charging concerns are checked, and each test follows the correct wiring information. Work methodically, respect safety-system boundaries, and confirm the repair under the conditions that originally revealed the problem. When a test or repair falls outside your experience, professional help is the safer next step.
Frequently Asked Questions
What are common signs of an electrical short?
Repeatedly blown fuses, flickering lights, or an affected feature that fails intermittently can be clues. Each can also have other causes, so inspect and test the relevant circuit before deciding what has failed.
Can a weak battery look like a wiring problem?
Yes. Low battery condition or a charging concern can cause electrical symptoms that overlap with wiring faults. Check the battery, connections, and charging performance before concluding that a circuit is shorted.
Should I keep replacing a fuse that blows?
No. If a correctly rated replacement fuse opens again, stop replacing it and investigate the protected circuit. Never fit a higher-rated fuse to prevent it from opening.
Can a scan tool confirm an electrical short?
A scan tool can report codes and related information, but a code alone does not prove a short or identify the exact physical cause. Use it to guide testing alongside the wiring diagram and appropriate measurements.
Is it safe to test airbag wiring with a multimeter?
Do not probe airbag or other safety-system wiring unless the vehicle-specific procedure explicitly permits it and you are qualified to follow that procedure. If uncertain, leave the inspection to a qualified technician.
What should I do if the fault happens only sometimes?
Record when it occurs, which features are affected, and what changed immediately beforehand. Intermittent symptoms can be easier to trace when the conditions are documented rather than recreated by repeatedly moving or pulling on wiring.
When should I ask a professional to diagnose the fault?
Seek qualified help if the circuit involves safety systems, the procedure is unclear, the fault returns after a repair, or testing requires tools or experience you do not have. Stopping before an unsafe or uncertain test can prevent further damage.
